Type C USB 3.2 Gen2 PCIE Card Hub USB 3.0 Adapter Multiplier USB3 3.1 Controller Riser Cards

Item Description

About Description:Type C USB 3.2 Gen2 PCIE Card Hub USB 3.0 PCI Express Board PCI-E PCI E USB 3 Adapter Multiplier USB3 3.1 Controller Riser Cards

Feature:

1. Reversible USB-C/Type-C connector design (plugs in both ways) allows you to conveniently connect cable in any orientation

2. Supports up to 7 USB 3.0 devices: 2 USB C + 3 USB A 5 port hub and 1 internal 20pin connector for expanding another two USB 3.0 port.

3. 3 external USB 3.0 + 2 external USB3.1 Type-C female connectors.

4. Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices.

5. One motherboard 20P male connector available for 2 more USB 3.0 port.

6. SATA power connector available for some high current consumption peripherals or 3 above devices at the same time.

7. Premium material and workmanship, high quality and long lifespan.

Specification:

Material: PCB

Color: Balck

Main Chips: RENSAS D720201 + GL35XX

Interface:  2 Port USB3.1 TYPE-C + 3 Port USB3.0 TYPE-A + 19PIN Header

Support System: Compatible with for Windows XP, for Vista, for Windows 7, for Linux, for Windows 8/8.1/10

Note:

1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

You'll receive:

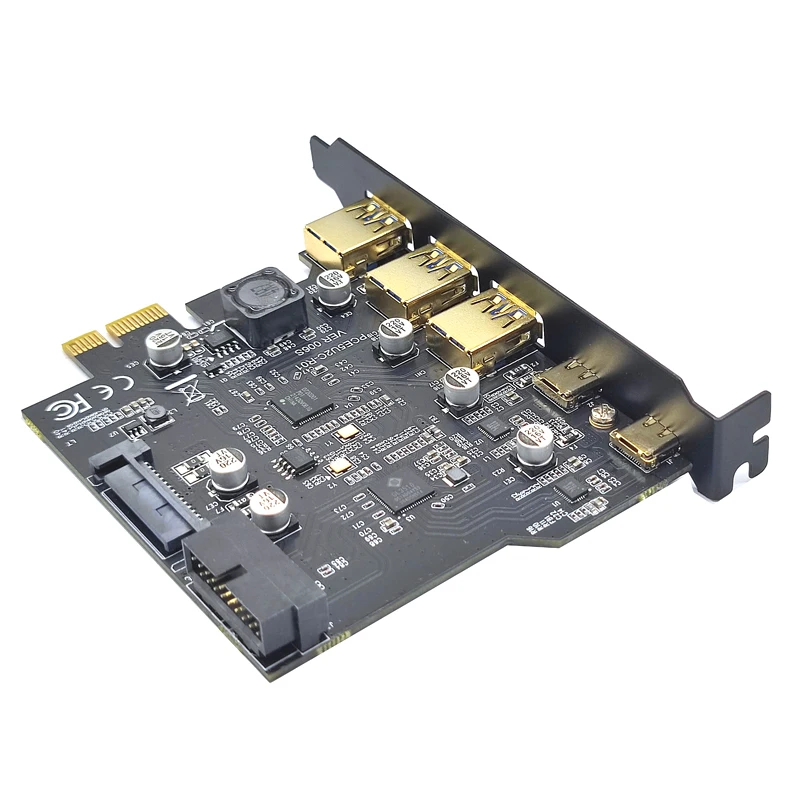

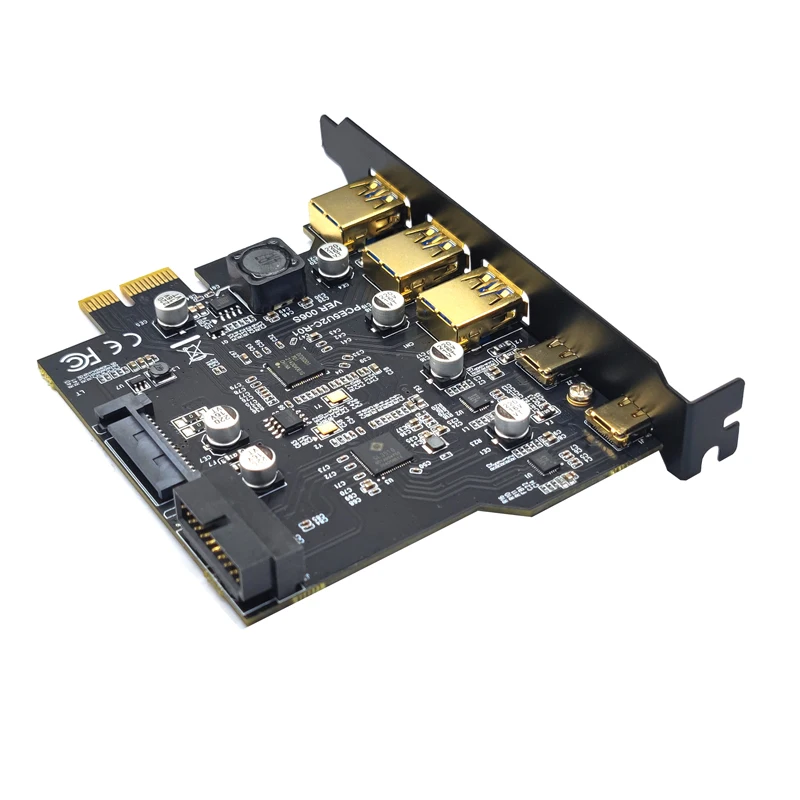

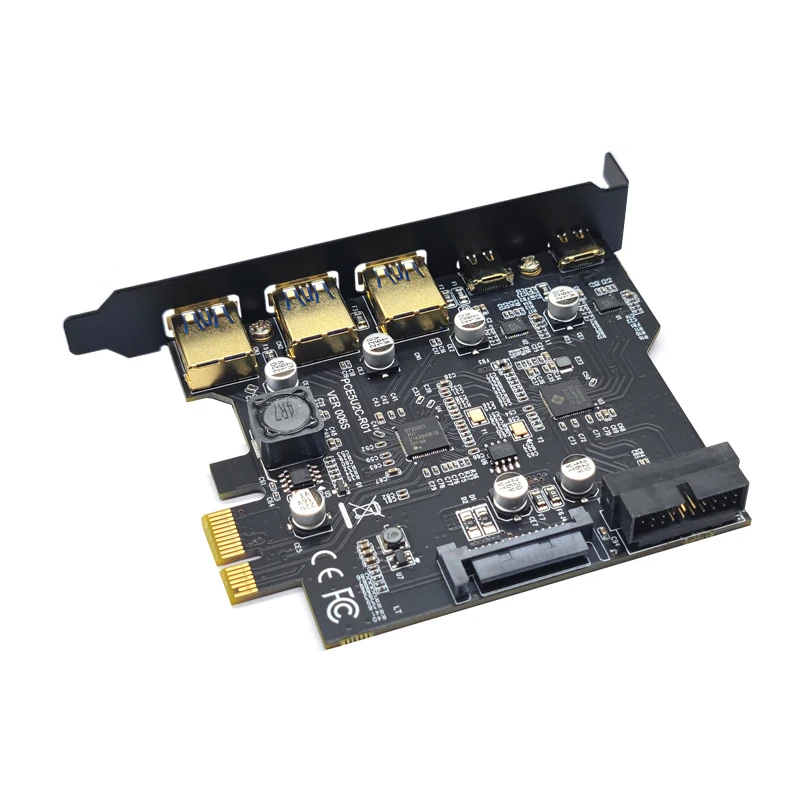

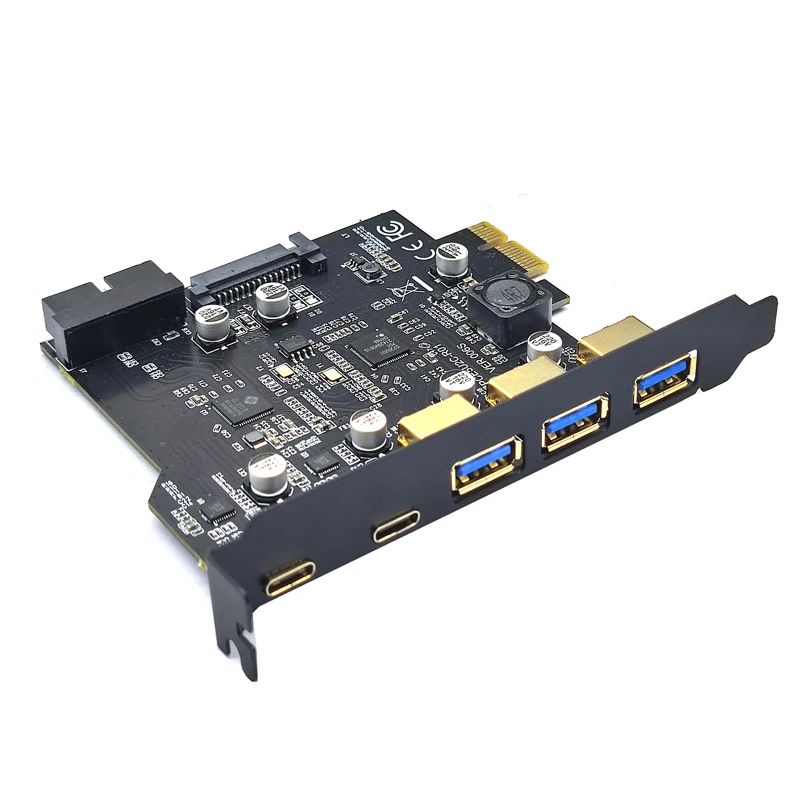

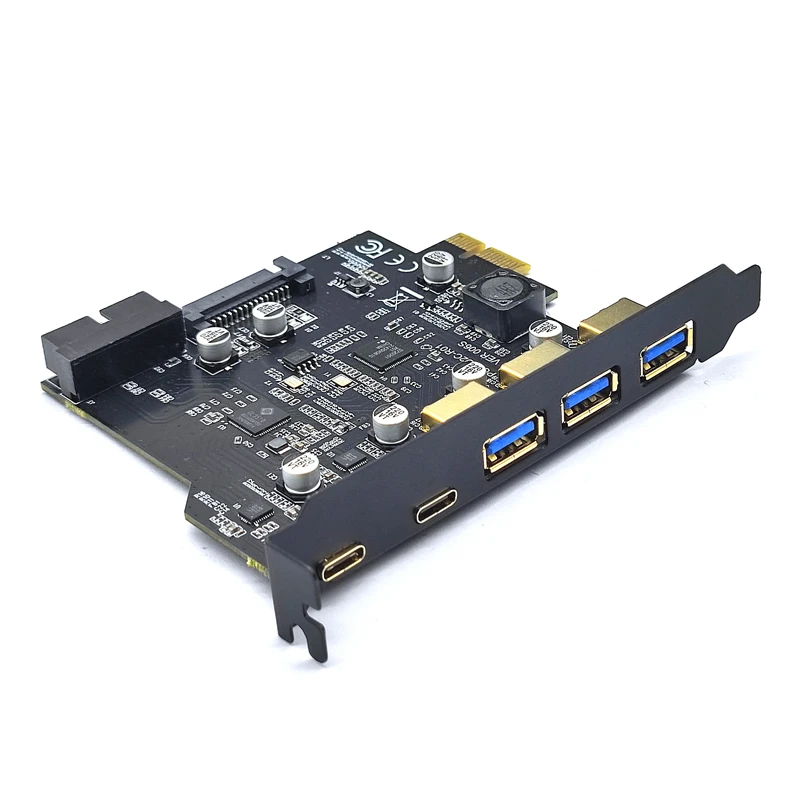

1 x USB 3.2 Gen2 PCIE Card

Please check pictures for more details.
